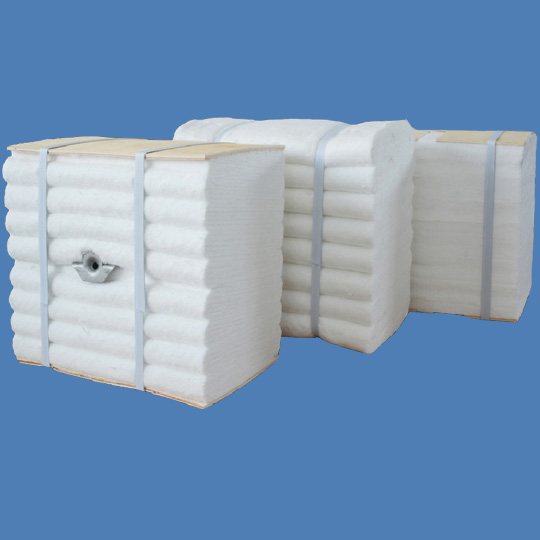

Ceramic Fiber Module

Ceramic Fiber Module is made of blanket fan folded, or pre-cut blanket stack bonded to form a module, to form a module with cut edges exposed.

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

CHARACTERISTIC

Ceramic Fiber Module is made of blanket fan folded, or pre-cut blanket stack bonded to form a module, to form a module with cut edges exposed.
1、Low density and low thermal conductivity
2、To be secured by concealed anchor
3、Greater mechanical strength
4、Shorter heat up and cool down time
6、Resilience and resistance to thermal shock
7、Flexible and easy to cut or install
8、Asbestos free

TECHNICAL DATA

Blanket Product	MCF1050	MCF1260ST	MCF1260HP	MCF1300HA	MCF1300LAZS	MCF1430AZS
Temperature Grade°C	1050	1260	1260	1300	1300	1430
Recommended Operation Temperature°C	≤950	≤1100	≤1150	≤1200	≤1200	≤1250
Product Code	MYTX-PT-02	MYTX-BZ-02	MYTX-GC-02	MYTX-GL-02	MYTX-DG-02	MYTX-HG-02
Permanent Linear Shrinkage (%)	950°C×24h≤4	1000°C×24h≤4	1100°C×24h≤4	1200°C×24h≤4	1250°C×24h≤4	1350°C×24h≤4
Nominal Density (kg/m³)	180~240
Al₂O₃	≥40	≥43	≥44	≥52
Al₂O₃+SiO₂	≥95	≥97	≥98.5	≥98.5
Al₂O₃+SiO₂+ZrO₂			-	-	≥99	≥99
ZrO₂			-	-	5~7	≥15
Fe₂O₃	≤1.0	≤1.0	≤1.0	≤1.0	≤0.5	≤0.5
Fe₂O₃	≤1.0	≤1.0	≤1.0	≤1.0	≤0.5	≤0.5
Availability (mm)	Per customer’s drawing

Note: Test data shown are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purpose. The product is listed comply to ASTM C892.

APPLICATIONS

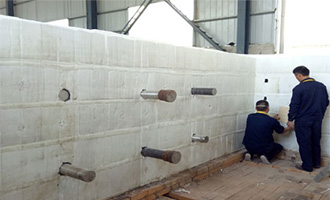

•High gas flow velocity furnace or duct lining
•Direct exposure to heat as furnace hot face lining
