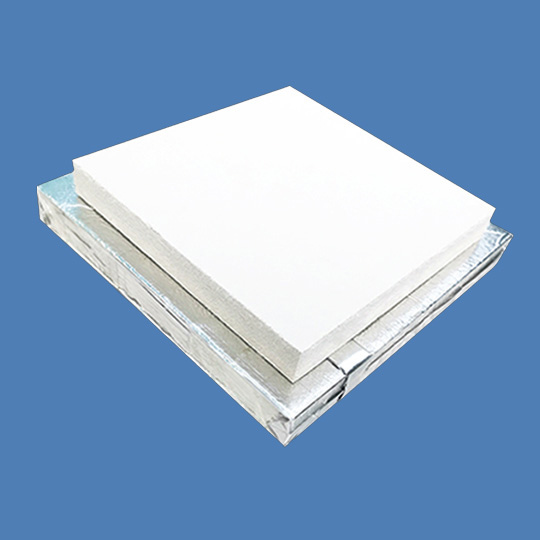

Vacuum Insulation Panel M200

The VIP based on M 200 offers the best service life comparing with all other core materials in the market when it comes to the comprehensive performance.And the series will include 3 different models in for different demand by the customers.

Send Email Chat Now

CHARACTERISTIC

TECHNICAL DATA

APPLICATIONS

Packaging & Storage

CHARACTERISTIC

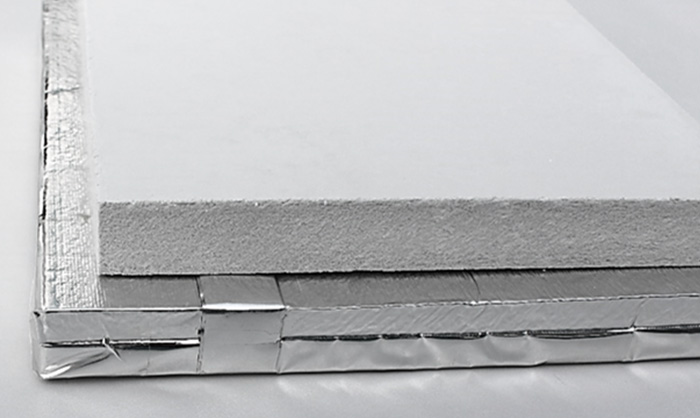

M 200 is a panel shaped insulation material which is mainly basing on fumed silica, and other components like opacifiers and fibers. Then optimized for the usage in the VIP - vacuum insulation panels. M 200 VIP have a very low density as well as the lowest possible thermal conductivity.
The VIP based on M 200 offers the best service life comparing with all other core materials in the market when it comes to the comprehensive performance.And the series will include 3 different models in for different demand by the customers.

AVAILABLE OPTIONS

Raw board – come out of the mold and the sides have slight “belly” of approximately 2 mm.
Cut to your required rectangular dimensions.
Non-woven fabric wrapping – allows a dust-free handling but air permeable covers. Equipped with this option M 200 can go directly into the drying oven. The non-woven
fabric can resist temperatures up to 160 ℃.

TECHNICAL DATA

Product type	M 200	M 200-eco	M 500
Max. Application temperature（℃）	200	200	500
Density（kg/m³）	~ 180	~ 170	~ 180
Specific heat capacity（KJ/kg K）	~ 0.9	~ 0.8	~ 0.9
Thermal conductivity W/mk At atmospheric pressure	~ 0.021	~ 0.019	~ 0.021
Thermal conductivity W/mk At atmospheric pressure	~ 0.021	~ 0.019	~ 0.021
Thermal conductivity (VIP)（W/mk）	~ 0.0041	~ 0.0038	~ 0.0043
Thermal conductivity (VIP)（W/mk）	~ 0.0041	~ 0.0038	~ 0.0043
Electric resistance	≥ 2000 MΩ	≥ 2000 MΩ	≥ 2000 MΩ
Fire protection class DIN ISO 4102	A1	A1	A1
Color	Grey	Grey	Grey

APPLICATIONS

Cold chain logistics
Cool boxes

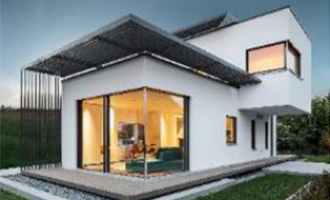

Building insulation

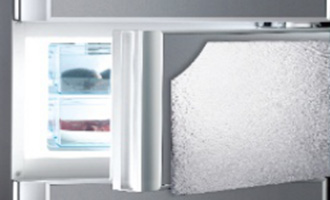

Household appliances
Other areas requiring insulation

Packaging & Storage

AVAILABLE DIMENSIONS
Sizes: 1000x600, 1200x600 mm
Thickness: 5–50 mm
Customized dimensions

METHERM standard sized VIP core (1000*600*25mm) would be packed by honeycomb pallet carton with 76 pcs quantity in each pallet. And the size of pallet would be 1120x1420x1100 mm and 20’ GP FCL can full-load 16 pallets. The packaging also could be customized according to your order.

The board products must be handled and stored in dry and ventilated conditions.
