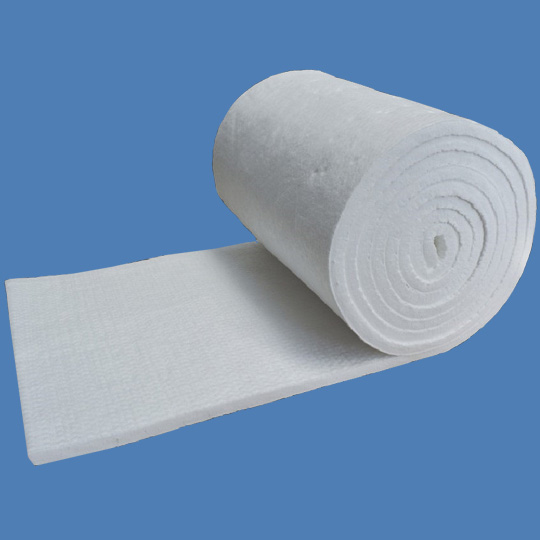

Ceramic Fiber Blanket
Ceramic Fiber Blanket
Ceramic Fiber Blanket
Ceramic Fiber Blanket is made of high purity Alumino-Silicate (and Zirconia) fibrous wool.
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING
CHARACTERISTIC
Ceramic Fiber Blanket is made of high purity Alumino-Silicate (and Zirconia) fibrous wool.

•Needled blanket
•Non-combustible
•Low density and low thermal conductivity
•Shorter heat up and cool down time
•Resilience and resistance to thermal shock
•Contain no organic binder
•Asbestos free
TECHNICAL DATA
Blanket Product MCF1050 MCF1260ST MCF1260HP MCF1300HA MCF1300LAZS MCF1430AZS
Temperature Grade°C 1050 1260 1260 1300 1300 1430
Recommended Operation Temperature°C ≤950 ≤1100 ≤1150 ≤1200 ≤1200 ≤1250
Permanent Linear Shrinkage (%) 950°C×24h≤4 1000°C×24h≤4 1100°C×24h≤4 1200°C×24h≤4 1250°C×24h≤4 1350°C×24h≤4
Thermal Conductivity (Mean Temp 500°C) W/(m·k) ≤0.153
Short Content (ф≥0.212mm) (%) ≤20 ≤20 ≤20 (Kaolin) ≤15 (HP) ≤20 (Kaolin) ≤15 (HP) ≤15 ≤15
Tensile Strength (for 25mm thickness blanket) (MPa) ≥0.04
Nominal Density (kg/m3) 64/96/128/160
Al2O3 ≥40 ≥43 ≥44 ≥52
Al2O3+SiO2 ≥95 ≥97 ≥98.5 ≥98.5
Al2O3+SiO2+ZrO2         ≥99 ≥99
ZrO2         5~7 ≥15
Fe2O3 ≤1.0 ≤1.0 ≤1.0 (Kaolin) ≤0.5 (HP) ≤1.0 (Kaolin) ≤0.5 (HP) ≤0.5 ≤0.5
Availability (Standard Product) T: 6mm~60mm; W: 610mm/1220mm; L: 7320mm/7620mm for 25mm thickness (3810mm for 50mm T; 5490mm for 38mm T)

Note: Test data shown are average results of tests conducted under standard procedures and are subject to variation. Results should not be used for specification purpose. The product is listed comply to ASTM C892.
APPLICATIONS
•Refractory backup

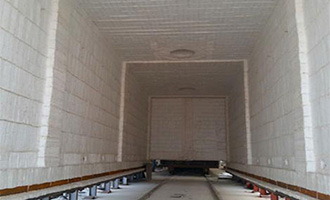

•Furnace lining
•Expansion joint seal
•Fire protection
•High temperature insulation
PACKAGING
