Ceramic Fiber Board
Ceramic Fiber Board
Ceramic Fiber Board

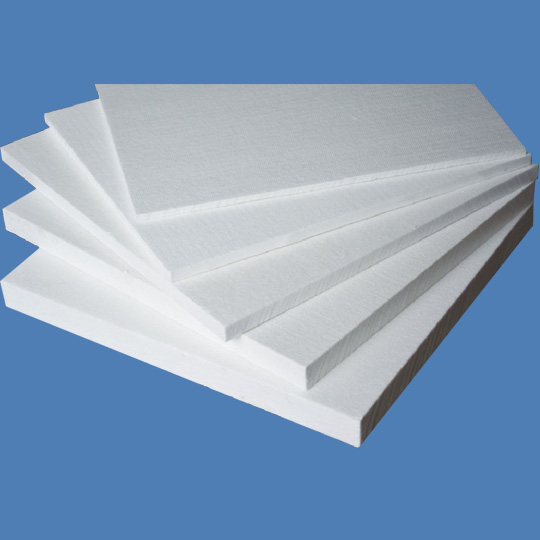

Ceramic Fiber Board is made of Alumino-Silicate fibrous wool by vacuum forming process.
CHARACTERISTIC
TECHNICAL DATA
APPLICATIONS
PACKAGING
CHARACTERISTIC
Ceramic Fiber Board is made of Alumino-Silicate fibrous wool by vacuum forming process.
•Shorter heat up and cool down time
•Resilience and resistance to thermal shock
•Greater mechanical strength
•Can withstand gas flow velocity of 30 m/sec
•Even density, thickness
•Flexible and easy to cut or install
•Asbestos free
TECHNICAL DATA
Board Product MCF1050 MCF1260ST MCF1260HP MCF1300HA MCF1300LAZS MCF1430AZS
Temperature Grade°C 1050 1260 1260 1300 1300 1430
Recommended Operation Temperature°C ≤950 ≤1100 ≤1150 ≤1200 ≤1200 ≤1250
Permanent Linear Shrinkage (%) 950°C×24h≤4 1000°C×24h≤4 1100°C×24h≤4 1200°C×24h≤4 1250°C×24h≤4 1350°C×24h≤4
Thermal Conductivity (Mean Temp 500°C) W/(m·k) ≤0.153
Water Content (%) ≤1
Loss on ignition (%) ≤8
Nominal Density(kg/m3) 220~400
Al2O3 34~36 36~38 39~42 45~47 38~40
Al2O3+SiO2 ≥95 ≥96 ≥98 ≥99 ≥90
Al2O3+SiO2+ZrO2           ≥99
ZrO2         5~7 ≥15
Fe2O3 <1.0 <0.5
Availability (Standard Product) 600/1200 mm width; 900 mm / 1000 mm Length; Thickness 3 mm~ 100 mm
APPLICATIONS

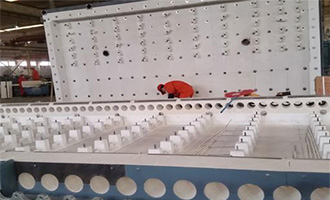

•Hot face lining material (alternative to blanket)
•Back-up insulation
•Expansion joints
PACKAGING
